Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer

Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer
Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer
Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 20 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 900 Doorslagspanning: Min.1100
Materiaal omslag: Nylon Sleutelwoord: Nylon dienende Litz-draad 0,1 mm * 900 zijde bedekte draden voor transformator
Markeren:

Nylon serving litz wire 0.1mm

,

Silk covered wires for transformer

,

900 strand litz wire nylon

Productomschrijving

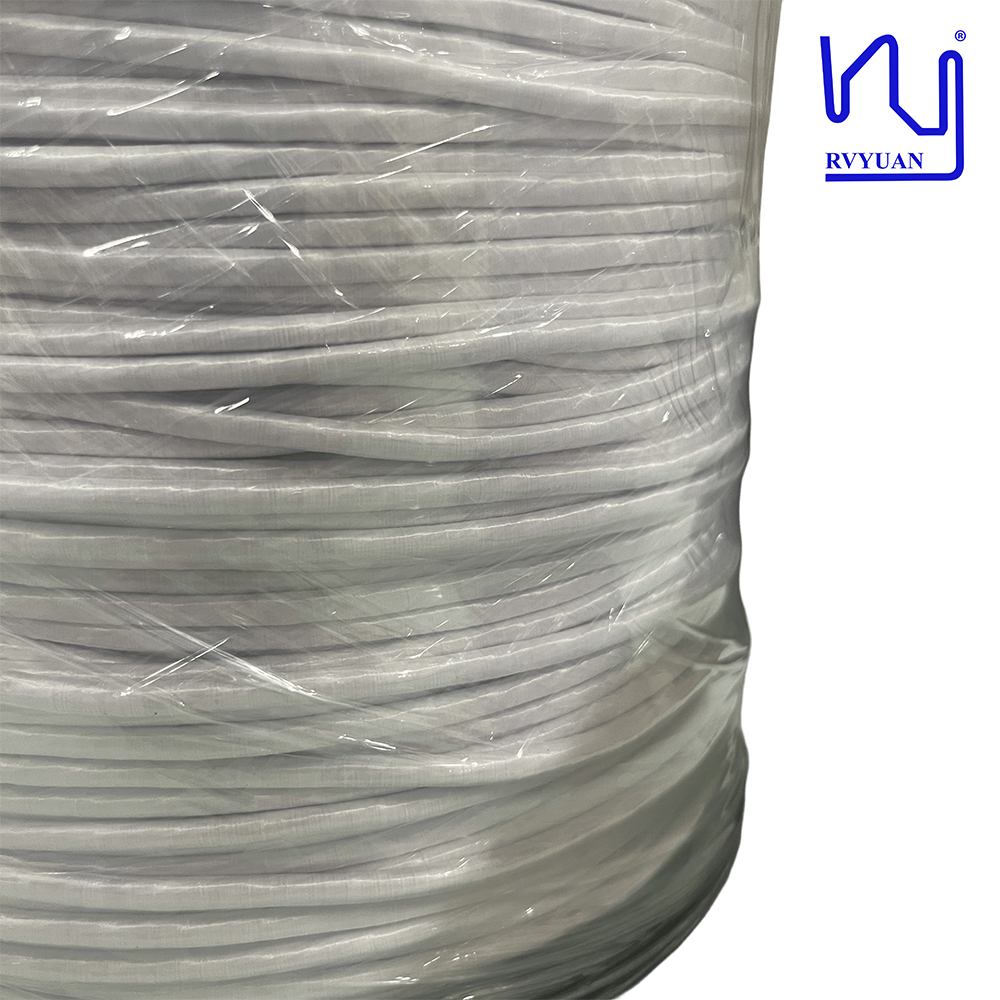

Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer
This specialized nylon serving Litz wire features 900 strands of 0.1mm silk-covered wires, engineered specifically for high-performance transformer applications.
Key Advantages
  • Multi-stranded construction significantly reduces AC resistance and eddy current losses
  • Ideal for high-efficiency transformers, inductors, and chokes operating at high frequencies
  • Nylon covering enhances surface lubricity for tighter, more uniform windings
  • Prevents damage to adjacent turns during winding processes
  • Superior flexibility and lower bending radius compared to solid wires
  • Easier installation in confined spaces and complex winding patterns
Technical Specifications
Item No. Diameter of Single Wire (mm) Conductor Diameter (mm) OD (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.107-0.125 0.10±0.003 Max. 4.54 ≤0.002646 ≥1100 65±10
Sample 1 0.110-0.113 0.098-0.10 4.05-4.51 0.002393 2800 √
Nylon Serving Litz Wire 0.1mm*900 Silk Covered Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
