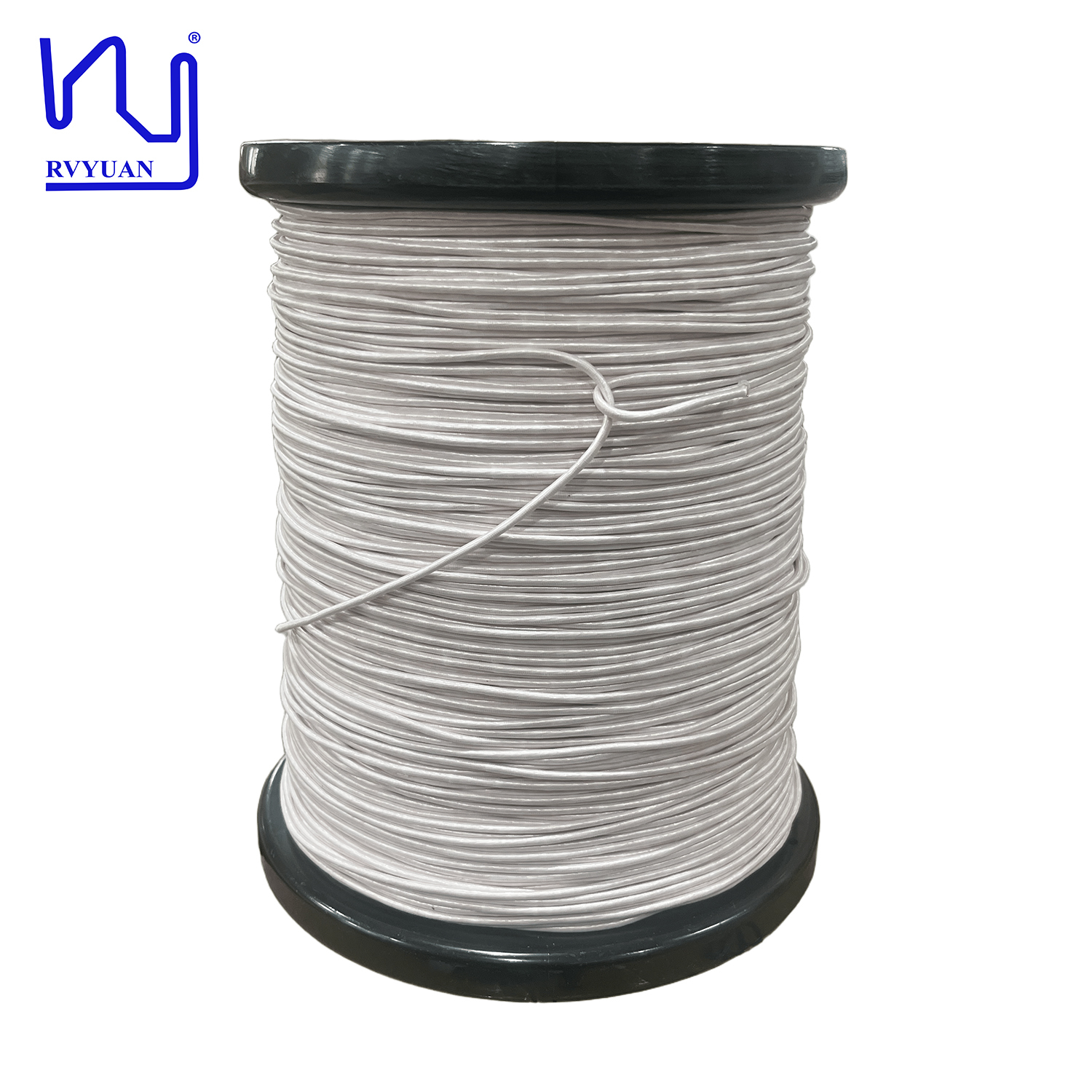

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 50 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: Peddel (-20 ~ 120 ℃) Doorslagspanning: Min.1100
Materiaal omslag: Nylon Sleutelwoord: 2USTC Hoogfrequente zijde gecoate Litz-draad 0,1x300 Multi-strengdraden voor transformator
Markeren:

high frequency litz wire

,

silk coated litz wire

,

multi strand transformer wire

Productomschrijving

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires
This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.
Key Applications & Benefits
  • Ideal for transformer windings in high-frequency power conversion circuits
  • Reduces AC resistance for improved energy efficiency
  • Minimizes heat generation in demanding applications
  • Nylon serving provides abrasion resistance and electrical isolation
  • Compact diameter enables higher packing density in transformer cores
  • Excellent voltage rating ensures reliable performance
Technical Specifications
Item Tech Requirement Sample 1 Sample 2
Diameter of Single Wire (mm) 0.107-0.125 0.110 0.113
Conductor Diameter (mm) 0.10±0.003 0.098 0.100
OD (mm) Max. 2.65 2.28 2.38
Resistance Ω/m (20℃) ≤0.007937 0.007391 0.007400
Breakdown Voltage (V) ≥1100 2500 2800
Pitch 47±3 √ √
Pinhole Test 69 faults/6m 18 14
Solderability Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue √ √
2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.

label:

zelf dunne streng plakkend,

geëmailleerde dunne streng,

AWG 40 verdunt streng
