| Diameter: | 0,071 mm | Temperatuur: | 155 |
|---|---|---|---|
| Certificering: | IEC/NEMA/JIS/RoHS/ISO | Geleider: | Koper |
| Strengen: | 1075 | Doorslagspanning: | Min.950 |
| Materiaal omslag: | Nylon | Productnaam: | Koperen gestrande Litz-draad 0,071 mm x 1075 zijde bedekte Litz-draad voor draadloze oplader |
| Sleutelwoord: | Koperen gestrande Litz-draad 0,071 mm x 1075 zijde bedekte Litz-draad voor draadloze oplader | ||
| Markeren: | Copper stranded Litz wire for wireless charger,Silk covered Litz wire 0.071mmx1075,Litz wire with silk insulation |
||

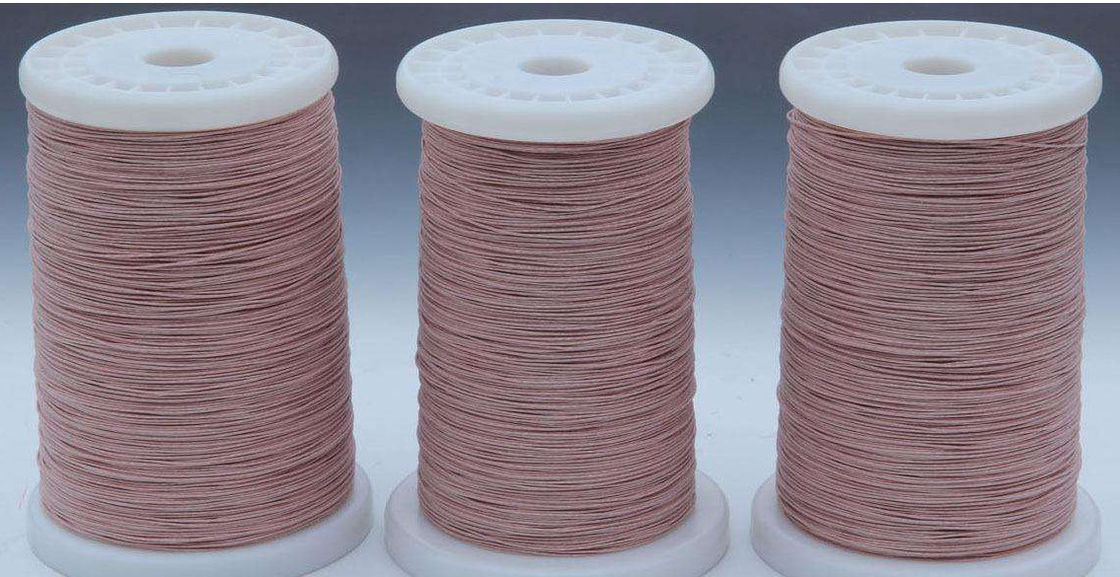

High-quality copper stranded litz wire specifically designed for wireless charger applications, featuring silk covering for optimal performance and durability.
Single wire diameter: 0.071mm
Number of strands: 1075
Thermal rating: Class 155
Maximum overall dimension: 3.79mm
Minimum Order Quantity: 10KG
Conversion: 1KG = 25M
The single wire is enameled, and after twisting, it's wrapped with nylon yarn on the outside. We also offer polyester yarn alternatives. For high-end audio cable applications, natural silk covering is available.
| Item No. | Outer diameter of single wire (mm) | Conductor diameter (mm) | Overall dimension (mm) | Resistance (Ω/m) | Breakdown voltage (V) | Pitch |
|---|---|---|---|---|---|---|
| Tech requirement | 0.077-0.084 | 0.071±0.003 | Max. 3.79 | ≤0.004642 | ≥950 | 40±10 |
| Sample 1 | 0.079 | 0.068 | 3.18 | 0.004325 | 2800 | ✓ |
| Sample 2 | 0.081 | 0.070 | 3.32 | 0.044317 | 2700 | ✓ |
