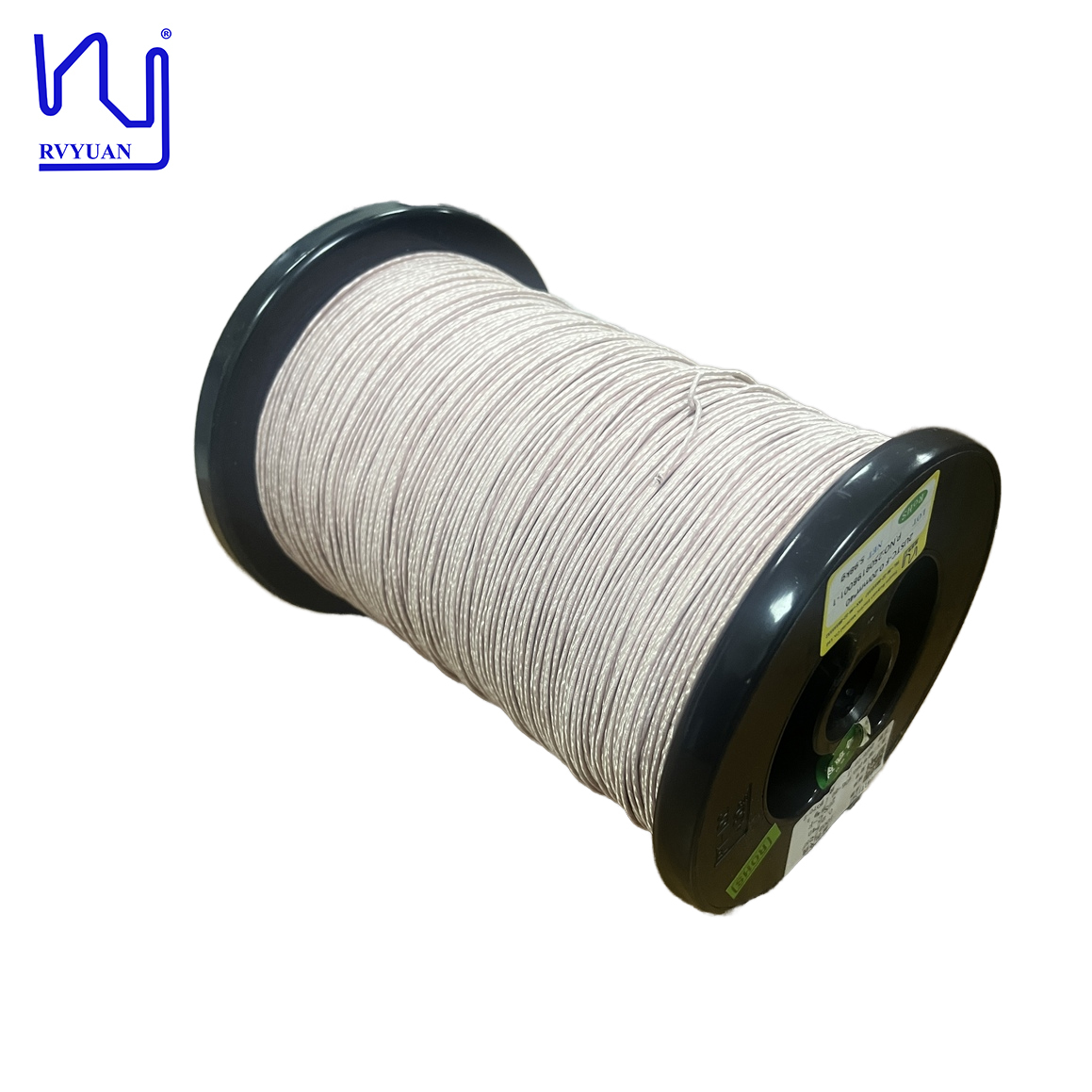

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: T/ t/ paypal
Levering vermogen: Voldoen aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,2 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 40 Afbraakspanning: Min.1600
Materiaal omslag: nylon Productnaam: 44/0,2 mm klasse 155/180 massief zijde bedekt Litz-draad rond type
Sleutelwoord: 44/0,2 mm klasse 155/180 massief zijde bedekt Litz-draad rond type
Markeren:

solid silk covered litz wire

,

0.2mm litz wire round type

,

class 155/180 litz wire

Productomschrijving

44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type
44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type is made of enameled wire and Dacron, which can increase the insulation strength, decrease the layer capacitance, and increase the Q value. Twisted USTC wires have features equivalent to the ones of Twisted enameled wires.
Applications
  • Wireless inductance
  • High power illumination system
  • Electroacoustic equipment
  • Ultrasonic equipment
  • High frequency induction and transformer
  • Data cable
  • Ear phone cable
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7 √ √
No. of strands 40 √ √
44/0.2mm Class 155/180 Solid Silk Covered Litz Wire Round Type 0
Please send inquiries directly to request more information or quote!

label:

zelf dunne streng plakkend,

geëmailleerde dunne streng,

AWG 40 verdunt streng
