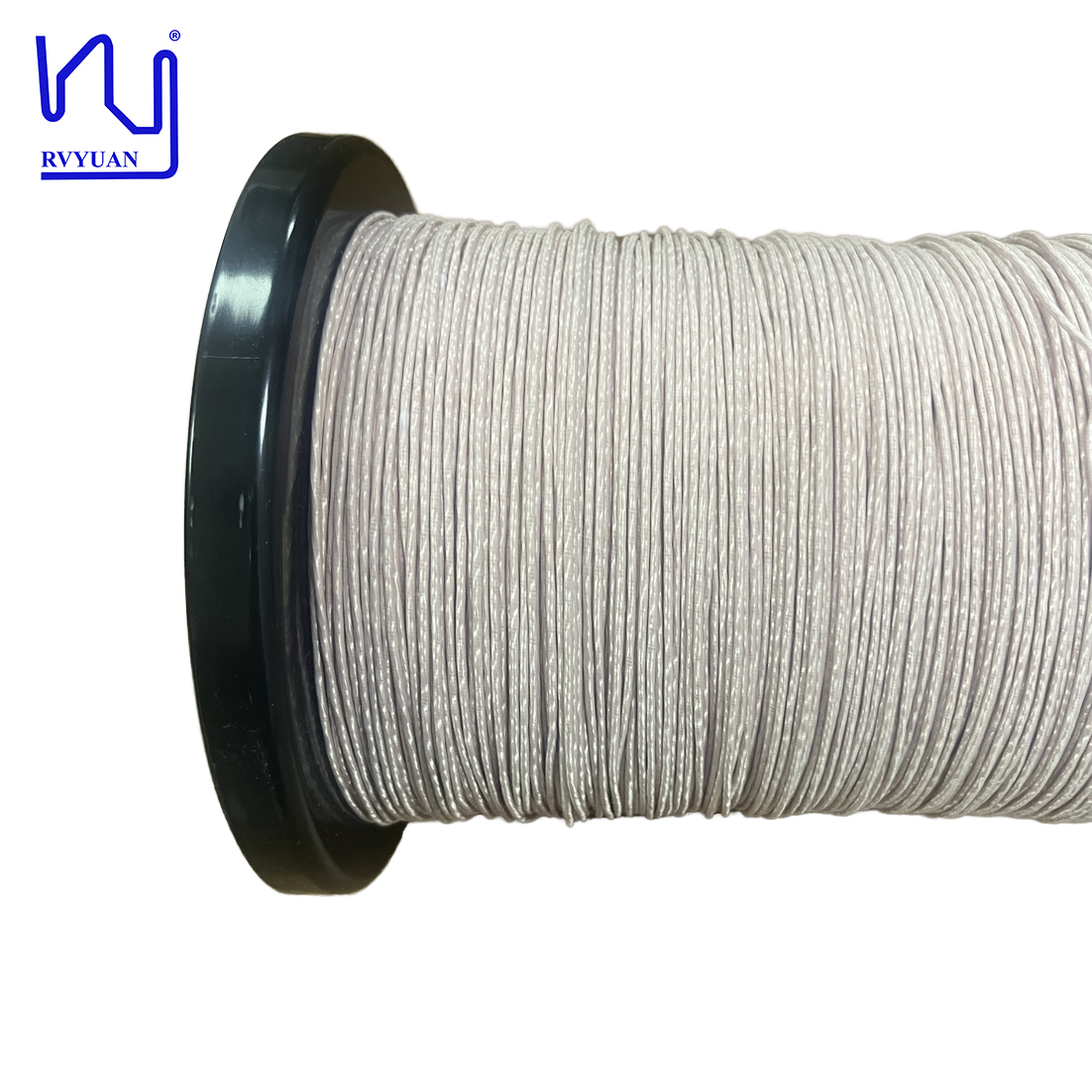

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V

Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: T/ t/ paypal
Levering vermogen: Voldoen aan uw vraag
Gedetailleerde informatie
Diameter: 0,2 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 40 Afbraakspanning: Min.1600
Materiaal omslag: nylon Productnaam: USTC-klasse 155 0,2 mm * 40 geïsoleerde zijde bedekte koperen Litz-draad 3500V
Sleutelwoord: USTC-klasse 155 0,2 mm * 40 geïsoleerde zijde bedekte koperen Litz-draad 3500V
Markeren:

0.2mm insulated silk litz wire

,

40 strand silk covered copper wire

,

3500V high voltage litz wire


Productomschrijving

USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V
This type of silk covered Litz wire has a wide range of applications, including transformer windings, voice coil wiring, and electric vehicle charging stations. We understand that every project is unique, so we offer customization services. You can specify your exact requirements for conductor specifications, number of strands, stranding method, resistance, and outer diameter. Our professional team is dedicated to helping you design silk-covered Litz wire that perfectly matches your system needs.
Product Specifications
Item Technical requests Test value 1 Test value 2
Single Diameter (mm) 0.216-0.231 0.219 0.223
Conductor diameter (mm) 0.2± 0.003 0.198 0.2
O.D. (mm) Max.1.8 1.57 1.70
Resistance Ω/m (20℃) Max. 0.01443 0.01357 0.01335
Breakdown Voltage V 1600 3800 3600
Pitch mm 33 ±7
No. of strands 40
USTC Class 155 0.2mm*40 Insulated Silk Covered Copper Litz Wire 3500V 0
Please send inquiries directly to request more information or quote!
