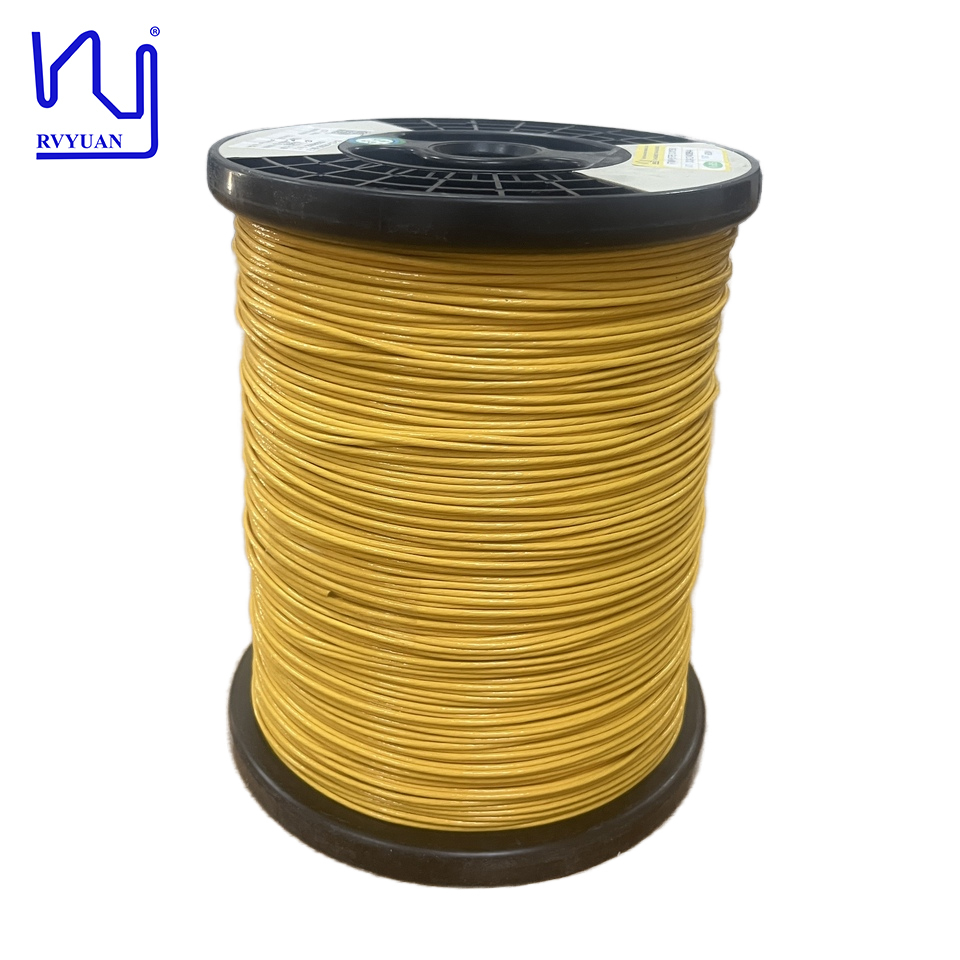

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: T/ t/ paypal
Levering vermogen: Voldoen aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 100 Afbraakspanning: Min.1100
Bedek materiaal: nylon Productnaam: 0,1 mm USTC hoge temperatuur hoge frequentie draad geëmailleerde zijde bedekte koperen Litz-draad
Sleutelwoord: 0,1 mm USTC hoge temperatuur hoge frequentie draad geëmailleerde zijde bedekte koperen Litz-draad
Markeren:

high frequency magnet litz wire

,

ETFE FEP PFA litz wire

,

twisted silk covered copper wire

Productomschrijving

0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire
ETFE extruded litz wire is a type of electrical cable that combines a bundle of individually insulated strands (litz wire) with an outer protective layer of extruded Ethylene Tetrafluoroethylene (ETFE). This construction is designed to reduce AC losses at high frequencies, while the durable ETFE coating provides excellent thermal, chemical, and mechanical resistance for use in demanding applications like wireless charging and induction heating.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
0.03mm To 0.5mm High Frequency Magnet Stranded ETFE FEP PFA Extruded Twisted Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!

label:

zelf dunne streng plakkend,

geëmailleerde dunne streng,

AWG 40 verdunt streng
