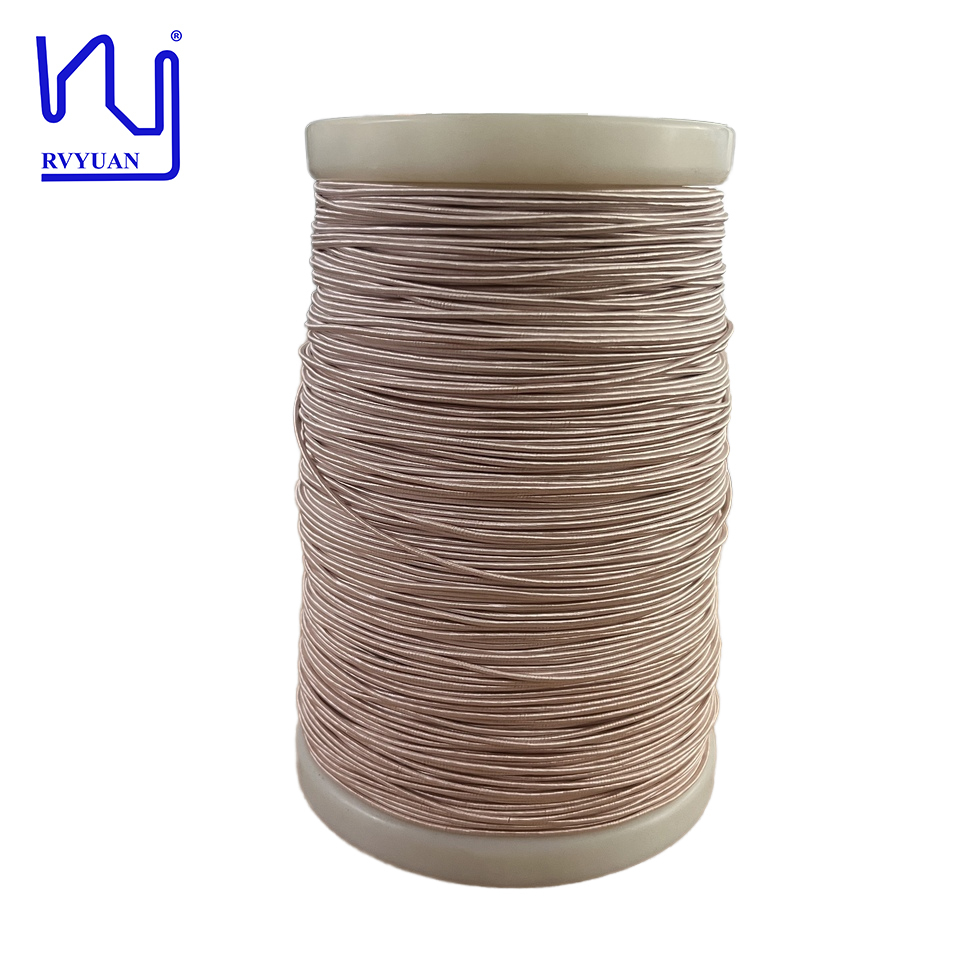

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers

Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: T/ t/ paypal
Levering vermogen: Voldoen aan uw vraag
Gedetailleerde informatie
Diameter: 0,071 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 250 Afbraakspanning: 1300
Isolatie: Hoofdtal Productnaam: Aangepaste 0,071 mm nylon geserveerd koper litz draad voor transformatoren
Sleutelwoord: Aangepaste 0,071 mm nylon geserveerd koper litz draad voor transformatoren
Markeren:

custom nylon served litz wire

,

0.071mm copper litz wire

,

litz wire for transformers


Productomschrijving

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers
With over 23 years of experience in litz wire production, we pride ourselves on our expertise and commitment to quality. Our extensive product line includes not only silk-covered litz wire, but also taped litz wire, taped flat litz wire, and stranded wire. This broad selection enables us to meet diverse application needs across a wide range of industries.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Custom 0.071mm Nylon Served Copper Litz Wire for Transformers 0
We understand that every project is unique, so we're committed to providing customized solutions to meet your specific needs. Working closely with our customers, we ensure the final product meets their exact design specifications.
