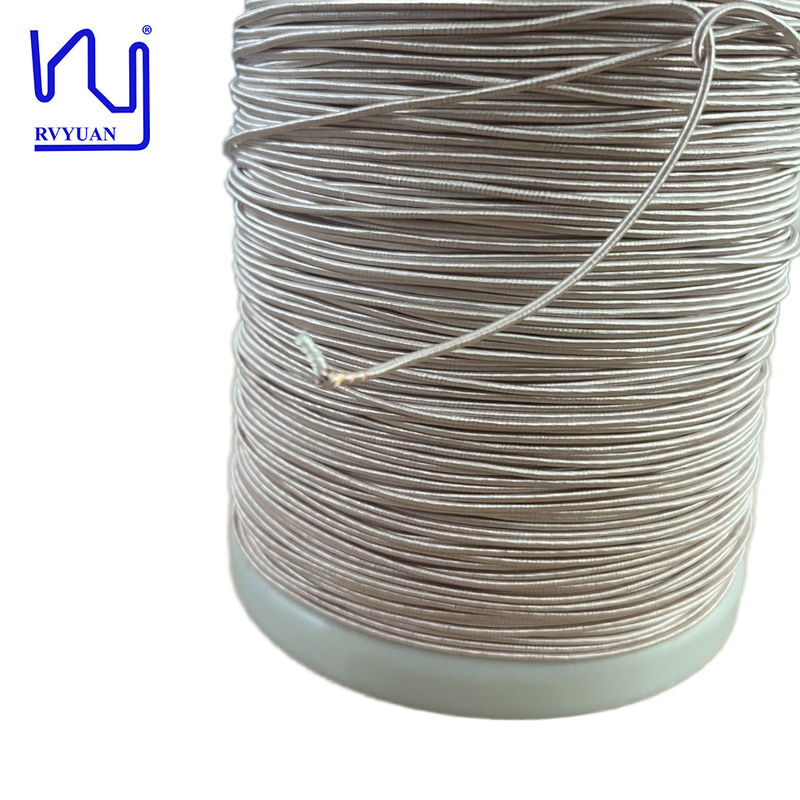

2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire

Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoen aan uw vraag
Gedetailleerde informatie
Diameter: 0,071 mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
bundels: 250 Afbraakspanning: 1300
Isolatie: UEW Productnaam: 2UTTC-F 0.071mmx250 Natuurlijke zijden bedekte litz draad
sleutelwoord: 2UTTC-F 0.071mmx250 Natuurlijke zijden bedekte litz draad
Markeren:

natural silk litz wire

,

0.071mm silk covered wire

,

250 natural silk litz


Productomschrijving

2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Product Description

We proudly introduce our premium Silk covered Litz Wire, a product meticulously crafted to meet the specific needs of our customers. This exceptional wire features a single 0.071mm enameled silver wire, finely twisted into 250 strands. Elegantly encased in natural silk, it not only looks great but also enhances performance. Our Silk covered Litz Wire is particularly well-suited for transformer winding and voice coil wire production, where precision and reliability are crucial.

Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire 0
