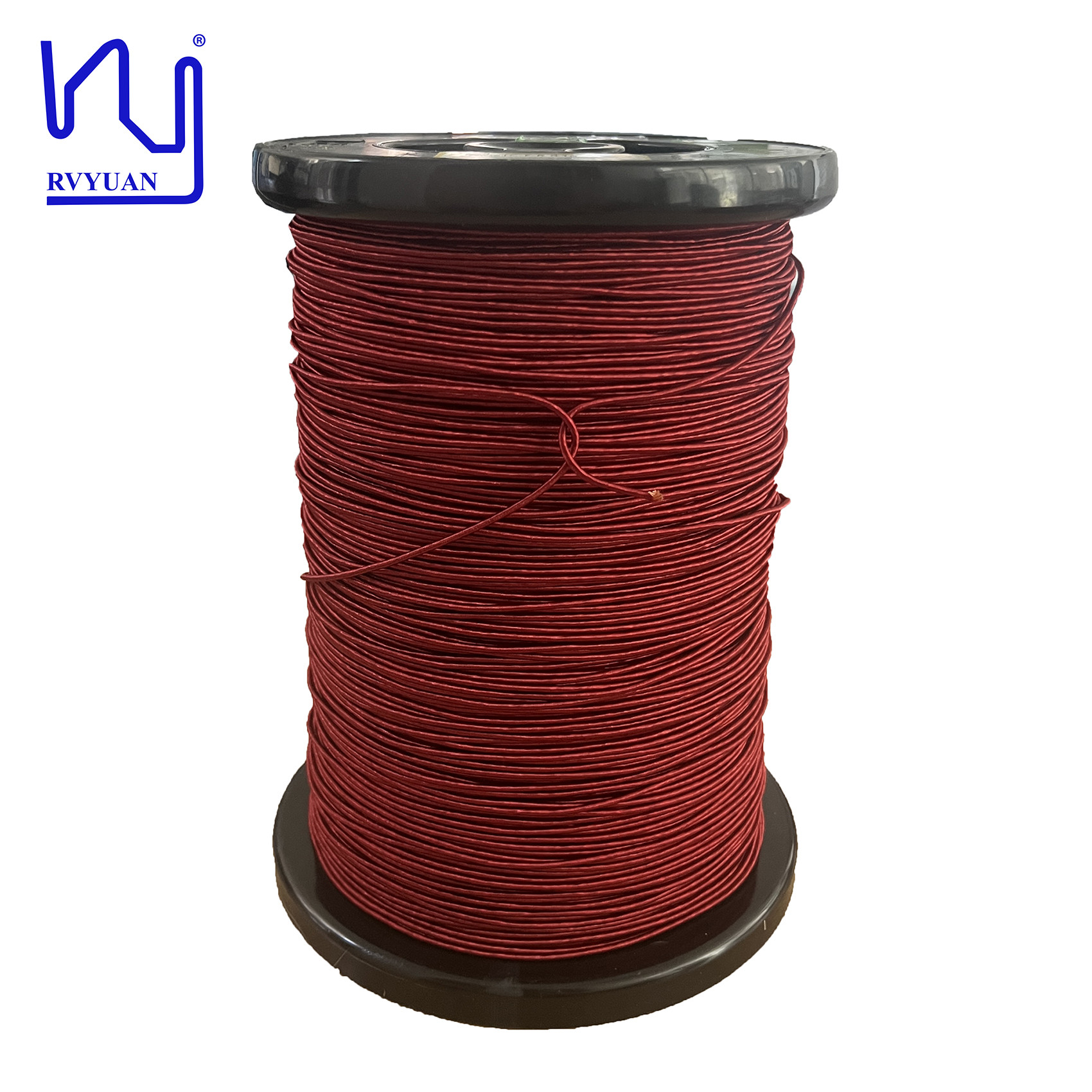

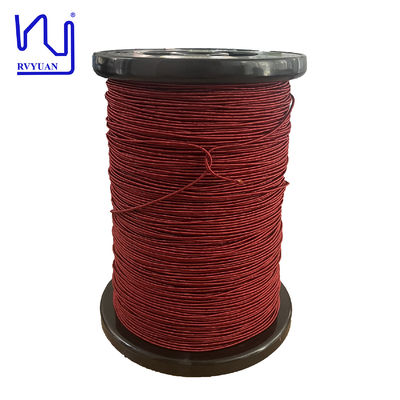

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 10 kg
Prijs: negotiable
Verpakking Details: Spoel met karton
Levertijd: 2-15 werkdagen
Betalingscondities: Onderhandeling
Levering vermogen: Voldoen aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0.1mm Temperature: 155/180
Certificering: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Key word: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
Markeren:

Pure Copper Twisted Litz Wire

,

0.1mm Yarn Wrapped Litz Wire

,

Durable Twisted Litz Wire

Productomschrijving

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire



What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5 √
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000



38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor 038 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor 1
