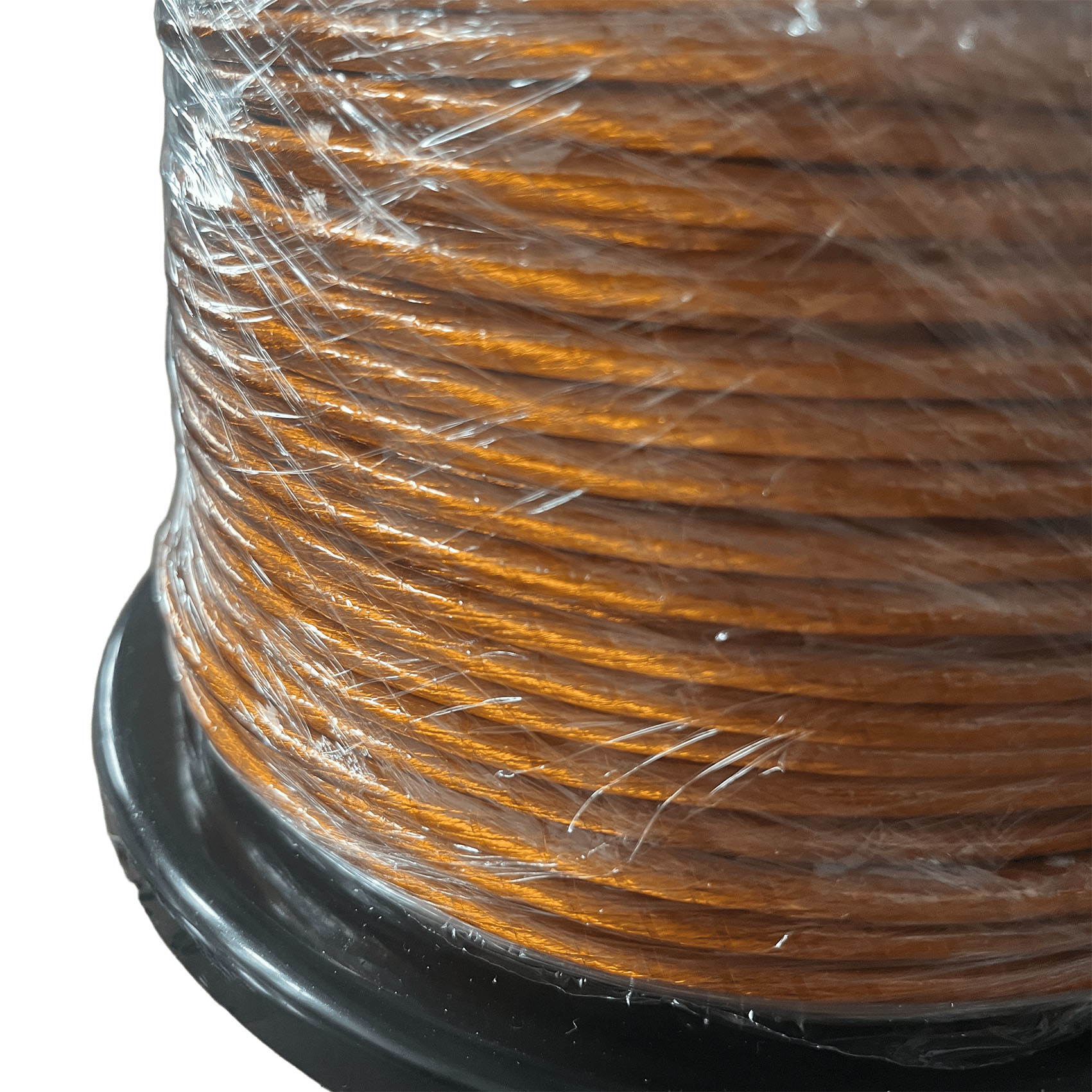

Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire

Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire
Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire
Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 20 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 180
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 180 Doorslagspanning: Min.6000
Sleutelwoord: Getapete Litz-draad UL-gecertificeerde 6000V polyimidefilm omwikkelde koperen Litz-draad
Markeren:

UL certified taped Litz wire

,

6000V polyimide Litz wire

,

copper Litz wire with polyimide film

Productomschrijving

Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire
This UL-certified 6000V polyimide film wrapped copper litz wire delivers exceptional performance for demanding transformer applications.
Advantages for Transformer Winding
  • High Voltage Resistance: Kapton tape provides excellent dielectric strength, making this wire ideal for high-voltage transformers requiring reliable insulation above 6,000V.
  • Superior Thermal Stability: With a 180°C thermal rating, the PI tape maintains electrical and mechanical properties under extreme heat, ensuring long-term reliability.
  • Reduced High-Frequency Losses: Litz construction with 1,200 fine insulated strands minimizes skin effect and proximity effect losses, improving efficiency in high-frequency transformers.
  • Enhanced Mechanical Protection: Outer Kapton layer provides excellent resistance to abrasion, cut-through, and chemical exposure throughout the transformer's operational life.
Technical Specifications
Item Technical Requirement Sample 1
Single Wire Diameter (mm) 0.107-0.125 0.110-0.113
Conductor (mm) 0.10±0.003 0.098-0.10
O.D. (mm) ≤5.28 4.57-5.03
Resistance (Ω/m) ≤0.001984 0.0011833
Dielectric Strength (V) ≥6000 13100
Pitch (mm) 65±10 65
No. Of Strands 1200 48x5x5
Tape Overlap (%) ≥50 54
Winding NO crack ok
Taped Litz Wire UL Certificated 6000V Polyimide Film Wrapped Copper Litz Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
