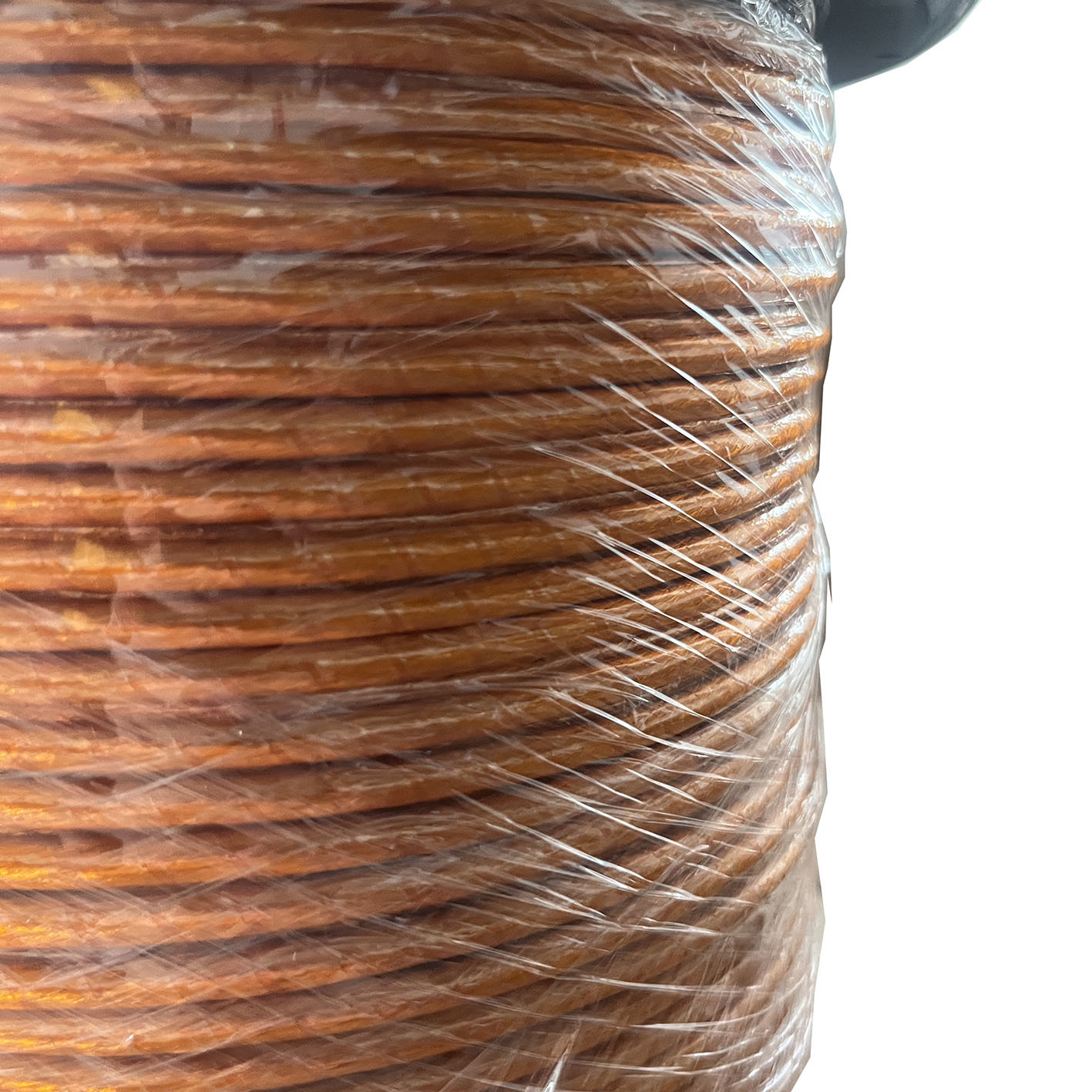

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 20 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 180
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 180 Doorslagspanning: Min.6000
Sleutelwoord: 6KV-spanning is bestand tegen PI-getapete hoogfrequente Litz-draad Koperen gestrande draad
Markeren:

6KV withstand PI taped Litz wire

,

high frequency copper stranded wire

,

PI taped copper Litz wire

Productomschrijving

6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire
This high-frequency Litz wire features excellent solderable enameled copper strands that simplify termination processes, saving valuable time and labor during transformer assembly. We accommodate projects of all sizes, including small-batch custom orders with competitive pricing tailored to your specific requirements.
Technical Specifications
Parameter Technical Requirement Sample 1 Measurement
Single Wire Diameter (mm) 0.107-0.125 0.110-0.113
Conductor (mm) 0.10±0.003 0.098-0.10
Outer Diameter (mm) ≤5.28 4.57-5.03
Resistance (Ω/m) ≤0.001984 0.0011833
Dielectric Strength (V) ≥6000 13100
Pitch (mm) 65±10 65
Number of Strands 1200 48x5x5
Tape Overlap (%) ≥50 54
Winding No crack OK
6KV Voltage Withstand PI Taped High Frequency Litz Wire Copper Stranded Wire 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
