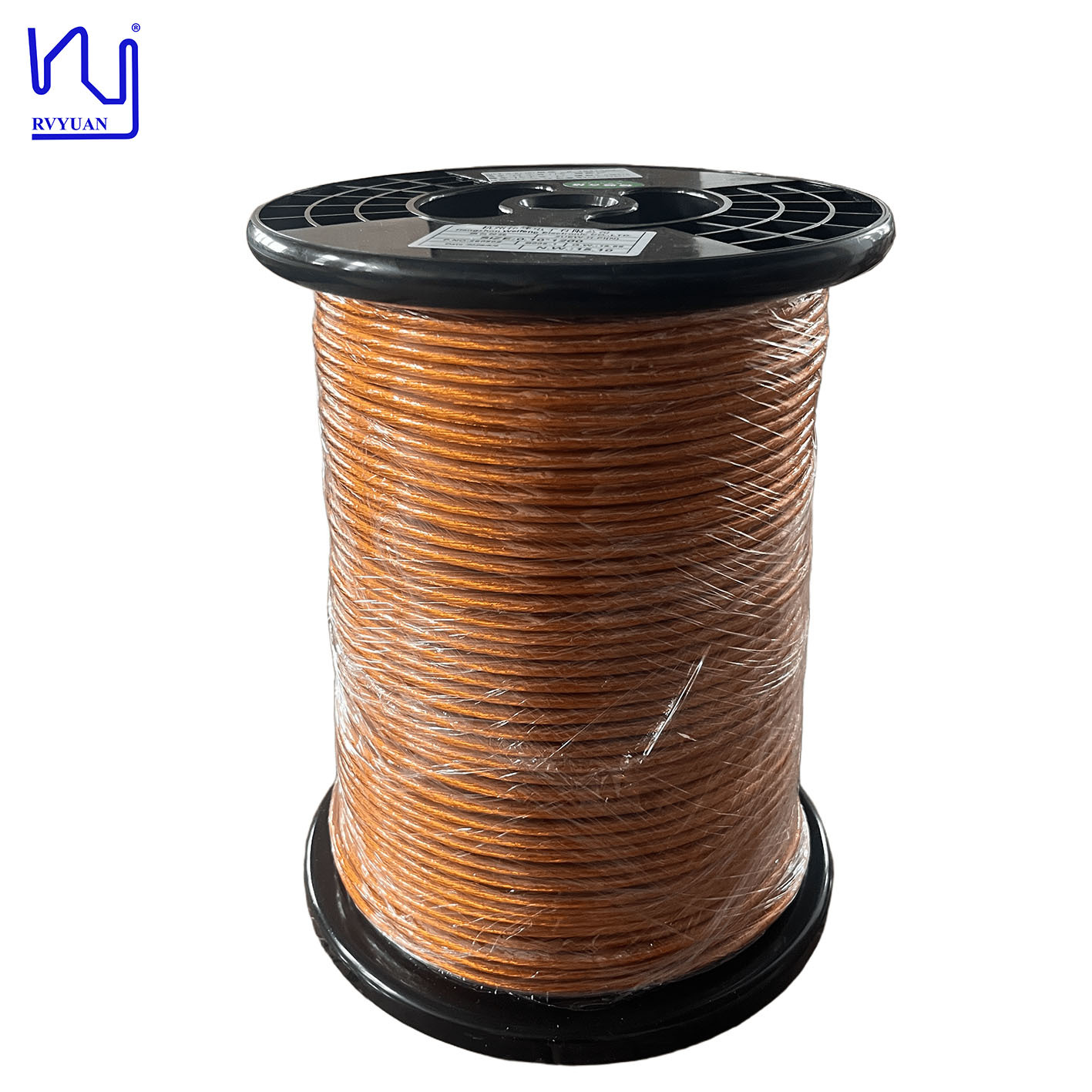

2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer

2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer
2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer
2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 20 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0,1 mm Temperatuur: 180
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 180 Doorslagspanning: Min.6000
Sleutelwoord: 2UEW-H-PI 0,1 mm x 1200 getapete litzedraad voor transformator
Markeren:

0.1mm taped Litz wire

,

1200 transformer Litz wire

,

copper Litz wire for transformers

Productomschrijving

2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer
This custom-designed round PI taped litz wire is specifically engineered for high-performance transformer windings, especially in applications requiring high voltage resistance and thermal stability.
Product Construction & Features
  • Consists of 1,200 individual strands of 0.1mm solderable enameled copper wire
  • Precisely twisted strands form a compact, high-frequency-friendly bundle
  • Tightly wrapped with high-quality Kapton (polyimide) tape
  • Exceptional dielectric strength with withstand voltage over 6,000V
  • Thermal rating of 180°C for demanding environments
Technical Specifications
Item Tech Requirement Sample 1
Single Wire Diameter (mm) 0.107-0.125 0.110-0.113
Conductor (mm) 0.10±0.003 0.098-0.10
O.D. (mm) ≤5.28 4.57-5.03
Resistance (Ω/m) ≤0.001984 0.0011833
Dielectric Strength (V) ≥6000 13100
Pitch (mm) 65±10 65
No. Of Strands 1200 48x5x5
Tape Overlap (%) ≥50 54
Winding NO crack ok
2UEW-H-PI 0.1mmx1200 Taped Litz Wire For Transformer 0
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
