Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire

Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire
Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire
Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire
Basisinformatie
Plaats van herkomst: China
Merknaam: RVYUAN
Certificering: ISO9001/ISO14001 /UL/SGS
Modelnummer: USTC
Min. bestelaantal: 20 kg
Prijs: Bespreekbaar
Verpakking Details: Spoel met doos
Levertijd: 15 werkdagen
Betalingscondities: T/T/Paypal
Levering vermogen: Voldoe aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
Diameter: 0.055mm Temperatuur: 155
Certificering: IEC/NEMA/JIS/RoHS/ISO Geleider: Koper
Strengen: 126 Doorslagspanning: Min.950
Materiaal omslag: Nylon Sleutelwoord: Geëmailleerde USTC-draad 0,055 mm x 126 natuurlijke zijde bedekt verzilverde koperen litzedraad
Markeren:

enameled USTC litz wire

,

silver plated copper litz wire

,

natural silk covered litz wire

Productomschrijving

Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver Plated Copper Litz Wire
This customized natural silk covered silver plated litz wire is engineered to meet the exacting demands of high-end audio applications. Its unique construction provides superior signal transmission, purity, and durability.
Product Features
  • Each silver plated copper wire features enamel insulation for complete electrical isolation between strands
  • Forces signal to flow through the entire conductor, minimizing eddy currents and phase distortion
  • Exceptional dielectric voltage resistance of at least 950 volts for safety and reliability
  • Ideal for high-voltage tube amplifier circuits and premium audio applications
Technical Specifications
Parameter Specification
Conductor Diameter 0.0550±0.0030 mm (silver layer: 0.0002 mm)
Single Sides Insulated Layer Thickness 0.0050±0.0010 mm
Electrical Resistance of Single Wire 6.243~7.738 Ω/m
Breakdown Voltage ≥950 V
Twist Distance P1=8±2 mm, P2=21±3 mm
Stranding Mode 18X7
Electrical Resistance 0.0505~0.0627 Ω/m
Thermal Class F(155)
Soldering Time 2S/390±5℃
Twist Direction Z
Faults/5m (Saline Pinhole) 0

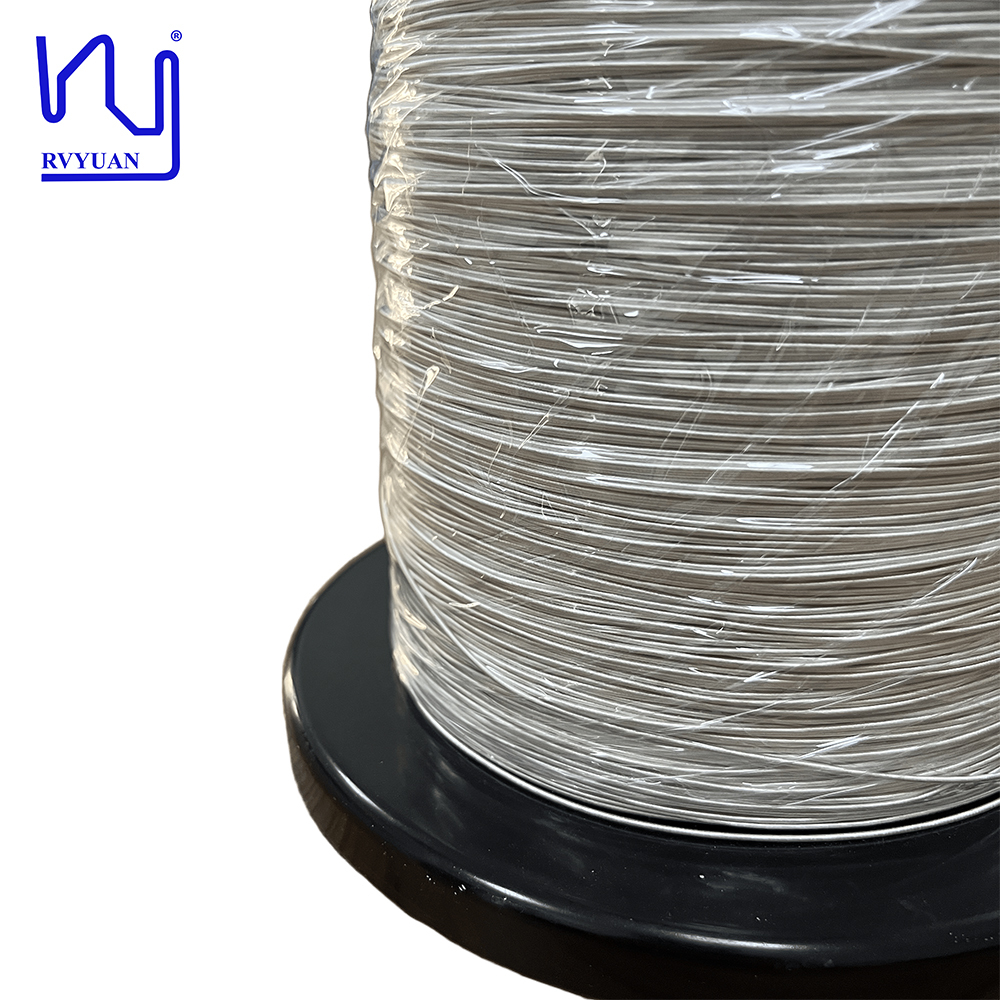

Product Image
Enameled USTC Wire 0.055mmx126 Natural Silk Covered Silver plated copper litz wire 0

label:

zelf dunne streng plakkend,

geëmailleerde dunne streng,

AWG 40 verdunt streng
