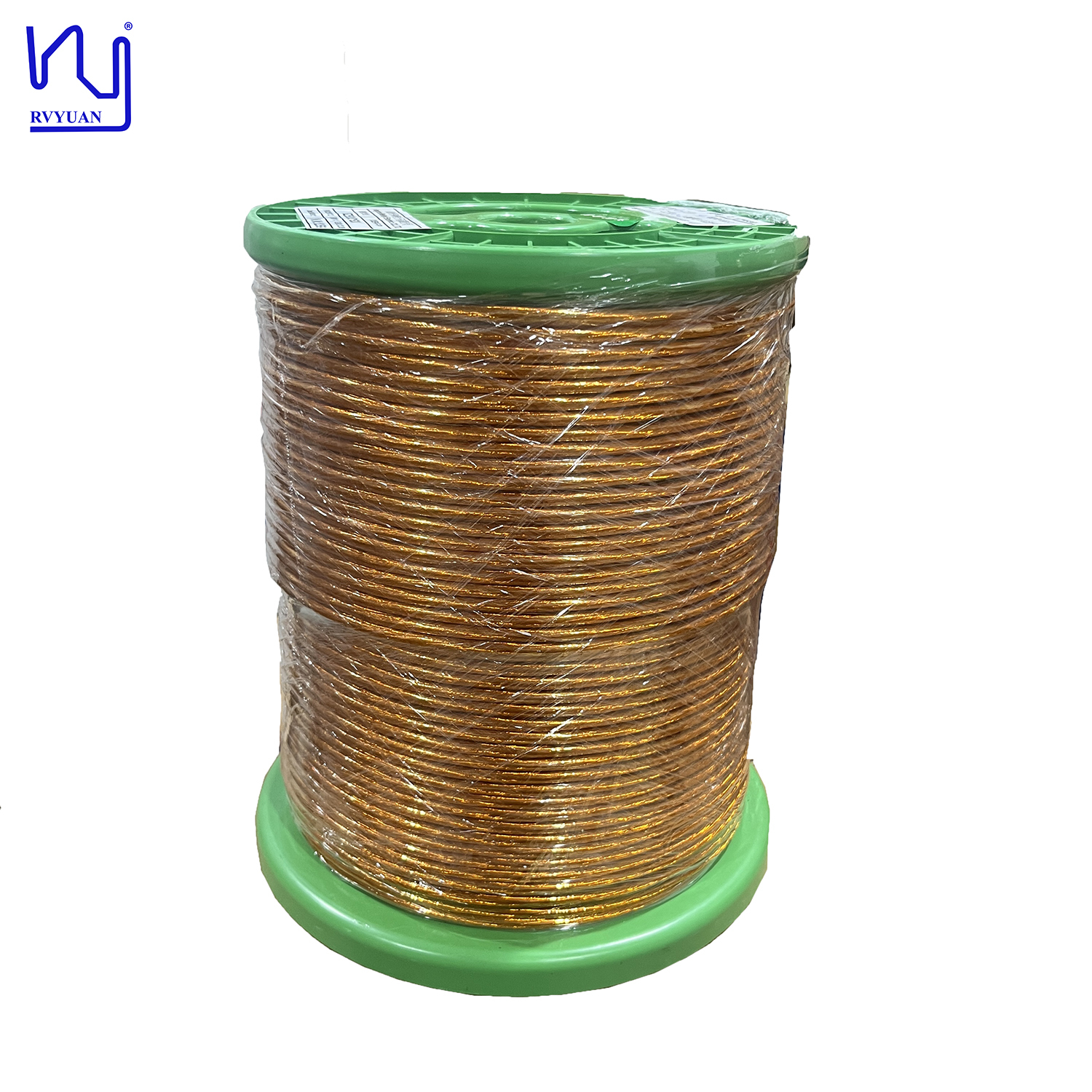

Taped Litz Wire 0.4mmx120 Round Type

Taped Litz Wire 0.4mmx120 Round Type
Taped Litz Wire 0.4mmx120 Round Type
Taped Litz Wire 0.4mmx120 Round Type
Basisinformatie
Plaats van herkomst: China
Merknaam: Rvyuan
Certificering: IEC/NEMA/JIS/RoHS/ISO
Modelnummer: vastgebonden litz draad
Min. bestelaantal: 20kg
Prijs: negotiable
Verpakking Details: Spoel met doos
Levertijd: 2-15 werkdagen
Betalingscondities: Onderhandeling
Levering vermogen: Voldoen aan uw vraag
Beste prijs Contact nu
Gedetailleerde informatie
naam: Litzdraad met polyesterimide 0,4 mmx120 koper Litzdraad voor transformator Certificering: ISO9001/ISO14001/UL/SGS
Diameter: 0,4 mm Geleider: Koper
Isolatie: Pi-film Nominale temperatuur: 180
Sleutelwoord: Litzdraad met polyesterimide 0,4 mmx120 koper Litzdraad voor transformator Aantal strengen: 120
Markeren:

0.4mm taped Litz wire

,

round type Litz wire

,

120 strand copper Litz wire

Productomschrijving

Taped Litz Wire 0.4mmx120 Round Type
Taped litz wire offers several advantages, particularly in applications involving high-frequency signals and electromagnetic fields.
  • Reduced Skin Effect: Minimizes skin effect, improving efficiency at high frequencies.
  • Lower Proximity Effect: Ensures more uniform current distribution across the wire.
  • Improved Flexibility: Easier to handle and install in tight spaces or complex assemblies.
  • Enhanced Thermal Performance: Operates at higher temperatures without degrading performance.
  • Reduced Electromagnetic Interference (EMI): Suitable for sensitive electronic applications.
  • Better High-Frequency Performance: Ideal for RF transmission, transformers, and inductors.
  • Durability and Protection: Tape provides mechanical protection against wear and tear.
  • Customizability: Available in various configurations to meet specific requirements.
Outgoing Test Specifications
Item Standard Test Result
Outer conductor diameter (mm) 0.068-0.081 0.068-0.071
Conductor diameter (mm) 0.06±0.003 0.056-0.060
Overall diameter (mm) Max.1.86 1.68-1.82
Pitch (mm) 29±5 17
Max resistance (Ω/m at 20℃) Max. 0.01809 0.01573
Breakdown voltage Mini (V) 6000 13700
NO. Of strands 385 77x5
Tape overlap % Min.50 53
Product Images
Taped Litz Wire 0.4mmx120 Round Type 0 Taped Litz Wire 0.4mmx120 Round Type 1
