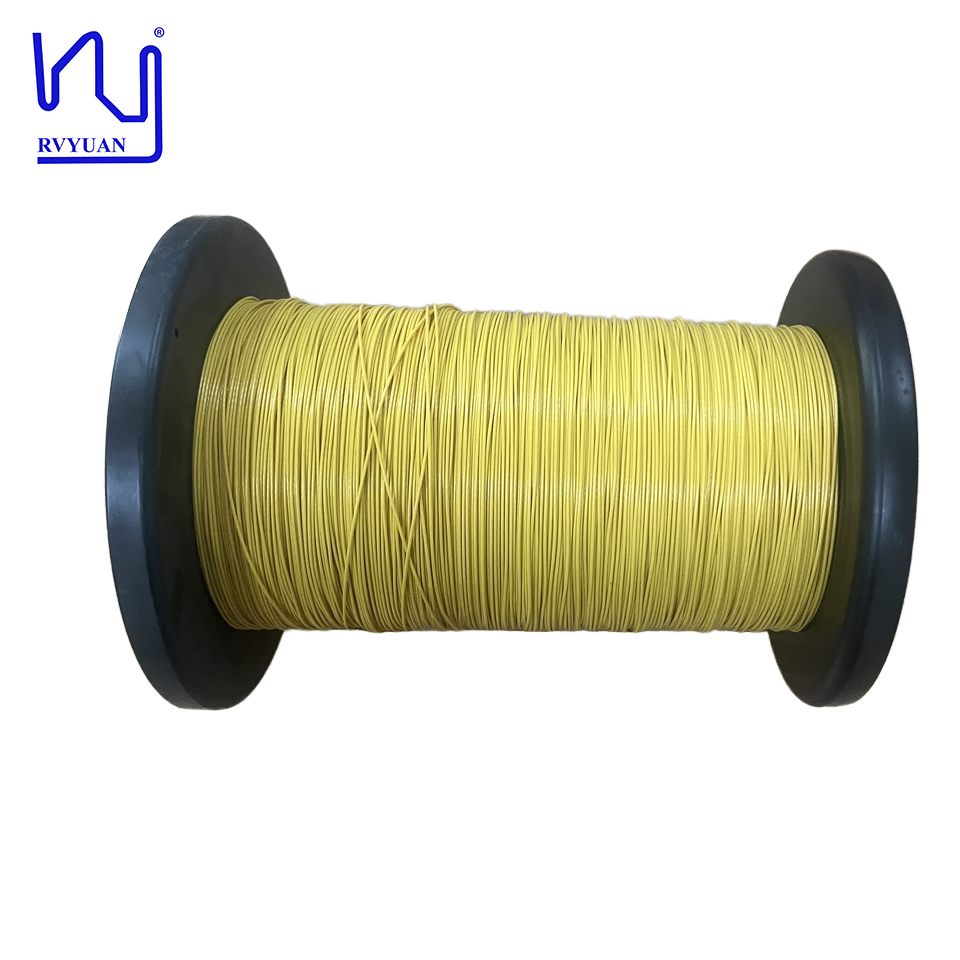

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: RVYUAN
Certificering: UL/ISO9001/ISO14001/RoHS/Reach
Modelnummer: 0.27mm
Min. bestelaantal: 1000 meter
Prijs: negotiable
Verpakking Details: Karton
Levertijd: 7 dagen
Betalingscondities: T/t/paypal
Levering vermogen: 1ton/month
Beste prijs Contact nu
Gedetailleerde informatie
Productnaam: ETFE isolatie 0,21 mm 0,24 mm 0,27 mm TiW geïsoleerde koper litz draad Thermische waarde: 155
Enkele draaddiameter: 0.27mm Geleidingsmateriaal: Koper
Aantal strengen: 7 Insuatie: ETFE
Markeren:

ETFE insulated copper litz wire

,

TIW insulated litz wire

,

0.27mm copper litz wire

Productomschrijving

ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire
Construction
  • Individual copper strands are insulated, often with a lacquer coating.
  • These strands are then twisted or bundled together to form the Litz structure.
  • An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.
Specifications
Characteristics Test Standard Test result
Outer diameter of single wire 0.295mm 0.288 | 0.287 | 0.287
Min. insulation thickness /Mm(min) 0.019 | 0.018 | 0.019
Pitch S12±2 ok | ok | ok
Single wire Diameter 0.27±0.004MM 0.269 | 0.269 | 0.268
Overall dimension 1.06-1.2mm(Max) 1.078 | 1.088 | 1.085
Conductor Resistance Max. 45.23Ω/KM(max) 44.82 | 44.73 | 44.81
Breakdown voltage Min. 6KV(min) 15 | 14.5 | 14.9
Solder ability 450℃ 3Secs OK | OK | OK
Conclusion Qualified
ETFE Insulation 0.21mm 0.24mm 0.27mm TIW Insulated Copper Litz Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
