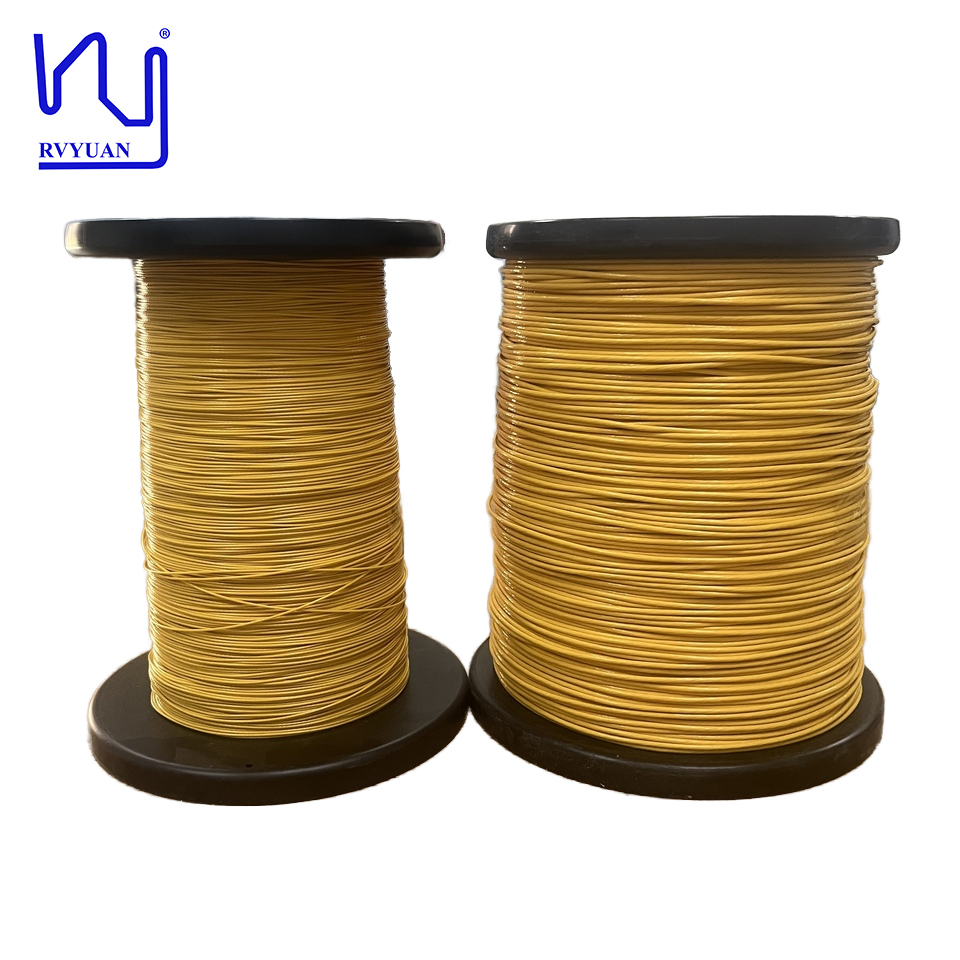

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Basisinformatie

Plaats van herkomst:	CHINA
Merknaam:	RVYUAN
Certificering:	UL/ISO9001/ISO14001/RoHS/Reach
Modelnummer:	0.27mm

Min. bestelaantal:	1000 meter
Prijs:	negotiable
Verpakking Details:	Karton
Levertijd:	7 dagen
Betalingscondities:	T/t/paypal
Levering vermogen:	1ton/month

Beste prijs Contact nu

Gedetailleerde informatie

Productnaam:	Aangepaste klasse 155 7 strengen geëxtrudeerde etfe isolatie koper litz draad	Thermische waarde:	155
Enkele draaddiameter:	0.27mm	Geleidingsmateriaal:	Koper
Aantal strengen:	7	Insuatie:	ETFE
Markeren:	Custom Class 155 Litz Wire , 7 Strands ETFE Insulation Wire , Extruded Copper Litz Wire

Productomschrijving

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire

Litz Wire:

A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.

ETFE Insulation:

Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288 \| 0.287 \| 0.287
Min. insulation thickness	/Mm(min)	0.019 \| 0.018 \| 0.019
Pitch	S12±2	ok \| ok \| ok
Single wire Diameter	0.27±0.004MM	0.269 \| 0.269 \| 0.268
Overall dimension	1.06-1.2mm(Max)	1.078 \| 1.088 \| 1.085
Conductor Resistance	Max. 45.23Ω/KM(max)	44.82 \| 44.73 \| 44.81
Breakdown voltage	Min. 6KV(min)	15 \| 14.5 \| 14.9
Solder ability	450℃ 3Secs	OK \| OK \| OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
