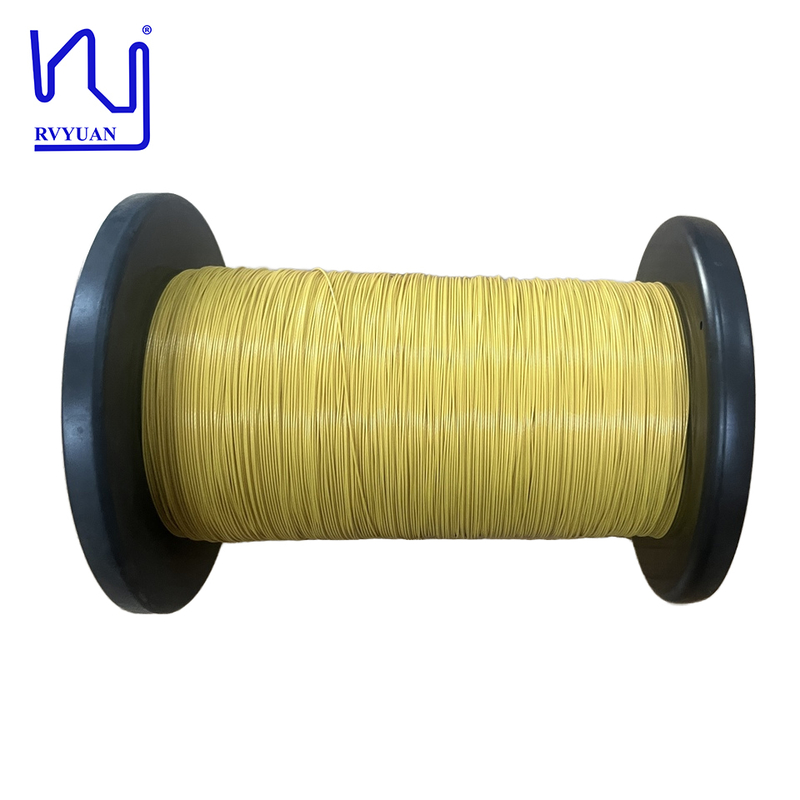

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Basisinformatie

Plaats van herkomst:	CHINA
Merknaam:	RVYUAN
Certificering:	UL/ISO9001/ISO14001/RoHS/Reach
Modelnummer:	0.24mm

Min. bestelaantal:	1000 meter
Prijs:	negotiable
Verpakking Details:	Karton
Levertijd:	7 dagen
Betalingscondities:	T/t/paypal
Levering vermogen:	1ton/month

Beste prijs Contact nu

Gedetailleerde informatie

Productnaam:	Aangepaste etfe geëxtrudeerde litz draad 0,24 mmx7 strengen tiw voor transformator	Thermische waarde:	155
Enkele draaddiameter:	0.24mm	Geleidingsmateriaal:	Koper
Aantal strengen:	7	Insuatie:	ETFE
Markeren:	ETFE insulated copper litz wire , 0.24mm 7-strand litz wire , TIW stranded copper wire

Productomschrijving

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.

Characteristics	Test Standard	Test result
Min. insulation thickness	Mm(min)0.11	0.120	0.127	0.120
Pitch	12±2	ok	ok	ok
Single wire Diameter	0.24±0.003MM	0.239	0.240	0.240
Overall dimension	/	1.03	1.05	1.05
Conductor Resistance	Max. 59.18Ω/KM	56.04	56.12	56.10
Breakdown voltage	Min. 6KV(min)	15.2	14.4	14.8
Solder ability	400℃ 3Secs	OK	OK	OK
Conclusion	Qualified

We have a professional team to provide technical support. Custom specifications available upon request.
