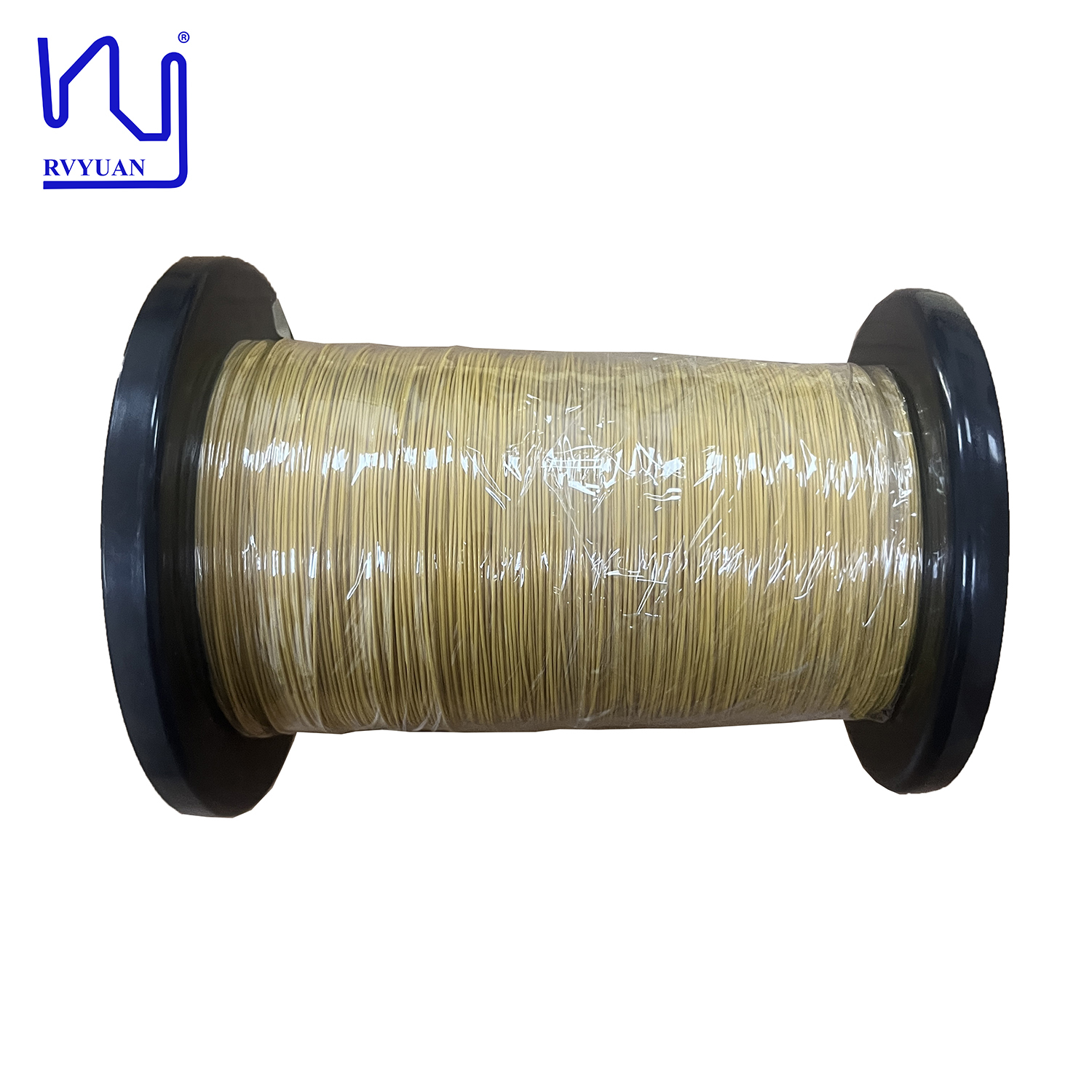

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: RVYUAN
Certificering: UL/ISO9001/ISO14001/RoHS/Reach
Modelnummer: 0.24mm
Min. bestelaantal: 1000 meter
Prijs: negotiable
Verpakking Details: Karton
Levertijd: 7 dagen
Betalingscondities: T/t/paypal
Levering vermogen: 1ton/month
Beste prijs Contact nu
Gedetailleerde informatie
Productnaam: ETFE isolatie litz draad 0,24 mmx7 strengen tiw voor hoogfrequente toepassingen Thermische waarde: 155
Enkele draaddiameter: 0.24mm Geleidingsmateriaal: Koper
Aantal strengen: 7 Insuatie: ETFE
Markeren:

ETFE insulated Litz wire

,

high frequency Litz wire

,

0.24mmx7 strands TIW wire

Productomschrijving

ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications
Extruded ETFE litz wire is a high-performance cabling solution designed for demanding electrical applications, particularly those operating in high-frequency environments. This litz wire has a single strand diameter of 0.24 mm and is constructed from seven strands twisted together. This unique construction enhances flexibility and reduces skin-effect losses, making it ideal for high-frequency applications.
Technical Specifications
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified
ETFE Insulation Litz Wire 0.24mmx7 Strands TIW For High Frequency Applications 0
We have a professional team to provide technical support. Custom specifications available upon request.
